Medium Voltage Cables

Medium Voltage Cables support a voltage range of between 6 kV and 33 kV, making them ideal for use in infrastructure, including the distribution and transmission of power.

With triple-layer Cross Linked Polyethylene (XLPE) insulation, Medium Voltage Cables are highly resistant to both very high and very low temperatures, as well as moisture and chemicals, ensuring a long lifespan and fewer breakdowns. The use of XLPE also affords the benefits of the material’s excellent electrical and mechanical properties, and its low dielectric factor.

At ARABIAN EXPERTS Cables, all XLPE insulation of our Medium Voltage Cables are done pursuant to standards outlined by IEC 60502-2 and IEC 60811. The conductors used are Stranded Class 2 of plain annealed copper or aluminum, in accordance with IEC 60228.

Standard outer sheathing on our Medium Voltage Cables is extruded PVC type ST2; special PVC sheathing can be accommodated on special request; in addition, other sheathing materials such as low smoke halogen free (LSHF), LLDPE, MDPE and HDPE are available on request.

Get Quote Now!

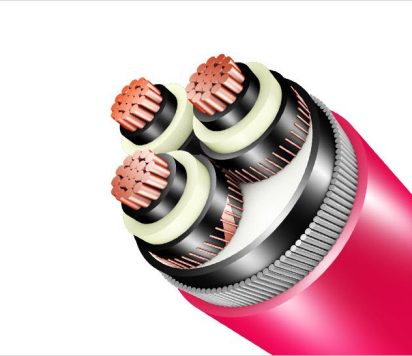

20160831_medium-voltage-725-1

Medium Voltage Cables Types

PVC Insulation TYPE A (IEC 60502-1), PVC Insulation TYPE TI1(BS EN 50363)

PVC INSULATION
STANDARD : IEC 60502-1, BS EN 50363





PARTICULARS & GUARANTEES RELATING TO PVC INSULATING COMPOUND (TYPE A)
Sl. No. Description Unit Guaranteed Particulars
 1 Tensile Strength and Elongation at break:
  Min Tensile strength  N/mm²  12.5
  Min elongation at break  %  150
 2 Low temperature bend test:
  Temperature at which specimen shall not crack  °C  -15±2
 3 Low temperature elongation test:
  Test temperature  °C  -15±2
  Min. Elongation  %  20
 4 Low temperature Impact test:
  Test temperature  °C  –
  Min. Elongation
 5 Accelerated ageing for specified at specified temperature followed by loss of mass test:
  Max. loss of mass after ageing 7 days at 80 ± 2 °C  mg/cm²  –
 6 Accelerated ageing for specified period specified temperature followed by tensile strength & elongation at break
  Number of Days ageing  Days  7
  Ageing Temperature  °C  100 ± 2
  Tensile Strength after ageing:
  Min. value  N/mm²  12.5
  Max. variation  %  25
  Elongation at break after ageing:
  Min. value  %  150
  Max. variation from unaged value  %  25
 7 Pressure test at high temperature:
  Test temperature  °C  80 ± 2
  Max. indentation  %  50
 8 Resistance to cracking
  Temperature at which specimen shall not crack  °C  150 ± 2
 9 Insulation resistance constant:
  Min. K. value at 70°C  M.Ohm.km

PVC Insulation as per SASO 1694, XLPE Insulation (IEC 60502-1, BS 5467)

PARTICULARS & GUARANTEES RELATING TO XLPE INSULATION
Sl. No. Description Unit Guaranteed Particulars
 1 Tensile Strength and Elongation at break:
  Min Tensile strength  N/mm²  12.5
  Min elongation at break  %  200
 2 Accelerated ageing for specified period specified temperature followed by tensile strength & elongation at break
  Number of Days ageing  Days  7
  Ageing Temperature  °C  135 ± 2
  Max. variation of tensile strength from unaged specimen  %  ± 25
  Max. variation of elongation from unaged specimen  %  ± 25
 3 Hot Set Test:
  Treatment
  – Temperature  °C  200 ± 3
  – Time under load  Minutes  15
  – Mechanical stress  N/cm²  20
  Max. elongation under load  %  175
  Max. permanent elongation after cooling  %  15
 4 Water Absorption:
  Treatment
  – Temperature  °C  85 ± 2
  – Duration  Days  14
  Max. variation of mass  mg/cm²  1.0
 5 Maximum permissible shrinkage:
  Treatment
  – Temperature  °C  130 ± 3
  – Duration  Hours  1
  Maximum permissible shrinkage:  %  4
 6 Insulation Resistance constant
  (Ki) at maximum rated temperature (90°C)  M.Ohm.km  3.67
 7 Volume Resistivity at maximum rated temperature (90°C)  Ohm.cm  1012

PVC Sheath TYPE ST2 (IEC 60502), TYPE 9 (BS 7655).

  • PVC OUTER SHEATH
  • STANDARD : IEC 60502-1, BS 7655
  •



PARTICULARS & GUARANTEES RELATING TO PVC OUTER SHEATH TYPE ST2 (IEC 60502), TYPE 9 (BS 7655)

Sl. No. Description Unit Guaranteed Particulars
 1 Tensile Strength and Elongation at break:
  Min Tensile strength  N/mm²  12.5
  Min elongation at break  %  150
 2 Low temperature bend test:
  Temperature at which specimen shall not crack  °C  -15 ± 2
 3 Low temperature elongation test:
  Test temperature  °C  -15 ± 2
  Min. Elongation  %  20
 4 Low temperature Impact test:
  Temperature at which specimen shall not crack  °C  -15 ± 2
 5 Loss of mass:
  After ageing for 7 days at 100 ± 2 °C
  Max. loss of mass  mg/cm²  1.5
 6 Accelerated ageing for specified period at specified temperature followed by tensile strength & elongation at break test
  Number of Days ageing    7
  Ageing Temperature  °C  100 ± 2
  Tensile Strength after ageing:
  Min. value  N/mm²  12.5
  Max. variation  %  25
  Elongation at break after ageing:
  Min. value  %  150
  Max. variation from unaged value  %  25
 7 Pressure test at high temperature:
  Test temperature  °C  90 ± 2
  Max. indentation  %  50
 8 Heat Shock Test:
  Temperature at which specimen shall not crack  %  150 ± 2
 9 Insulation resistance constant:
  Min. K. value at 20°C  M.Ohm.km  0.0035
 10 Flame Retardancy test (if required)    As per IEC 60332-1-2(upon request)

PVC Insulation PVC Sheathed Cables (IEC 60502-1), Copper.

  • PVC Insulation TYPE A (IEC 60502-1), PVC Insulation TYPE TI1(BS EN 50363)


  • PVC Insulation as per SASO 1694, XLPE Insulation (IEC 60502-1, BS 5467)


  • PVC Sheath TYPE ST2 (IEC 60502), TYPE 9 (BS 7655).


  • PVC Insulation PVC Sheathed Cables (IEC 60502-1), Copper.

    PVC INSULATED, PVC SHEATED CABLES

    COPPER CONDUCTORS

    STANDARD : IEC 60502-1

    600/ 1000 Volts

    • REQUEST A QUOTE



    • UNARMOURED
    • ALUMINIUM/STEEL WIRE ARMOURED
    • ALUMINIUM/STEEL TAPE ARMOURED





    CABLE CORE(S)
    Nominal Area No or wires Approx Conductor Diameter Nominal Insulation thickness
    mm² No. mm mm
     1×1.5 re 1 1.38 0.8
     1×1.5 rm 7 1.56 0.8
     1×2.5 re 1 1.78 0.8
     1×2.5 rm 7 2.01 0.8
     1×4 re 1 2.25 1.0
     1×4 rm 7 2.55 1.0
     1×6 re 1 2.76 1.0
     1×6 rm 7 3.12 1.0
     1×10 re 1 3.57 1.0
     1×10 rm 7 4.01 1.0
     1×16 rm 7 5.03 1.0
     1×25 rm 7 6.3 1.2
     1×35 rm 7 7.44 1.2
     1×50 rm 19 8.8 1.4
     1×70 rm 19 10.6 1.4
     1×95 rm 19 12.4 1.6
     1×120 rm 37 14 1.6
     1×150 rm 37 15.5 1.8
     1×185 rm 37 17.4 2.0
     1×240 rm 61 20 2.2
     1×300 rm 61 22.5 2.4
     1×400 rm 61 25.4 2.6
     1×500 rm 61 28.5 2.8
     1×630 rm 91 32.8 2.8
    UNARMOURED
    Nominal Sheath thickness Approx. Overall diameter Approx. Weight Packing
    mm mm Kg/Km meters
    1.4 6 55 1000
    1.4 6 55 1000
    1.4 7 65 1000
    1.4 7 70 1000
    1.4 7 90 1000
    1.4 8 95 1000
    1.4 8 110 1000
    1.4 8 120 1000
    1.4 9 155 1000
    1.4 9 165 1000
    1.4 10 230 1000
    1.4 12 335 1000
    1.4 13 440 1000
    1.4 15 575 1000
    1.4 17 785 1000
    1.5 19 1075 1000
    1.5 21 1325 1000
    1.6 23 1600 1000
    1.7 25 2000 1000
    1.8 28 2600 1000
    1.9 32 3250 500
    2.0 35 4150 500
    2.1 39 5250 500
    2.2 43 6700 500



    CABLE CORE(S)
    Nominal Area No or wires Approx Conductor Diameter Nominal Insulation thickness
    mm² No. mm mm
     2×1.5 re 1 1.38 0.8
     2×1.5 rm 7 1.56 0.8
     2×2.5 re 1 1.78 0.8
     2×2.5 rm 7 2.01 0.8
     2×4 re 1 2.25 1.0
     2×4 rm 7 2.55 1.0
     2×6 re 1 2.76 1.0
     2×6 rm 7 3.12 1.0
     2×10 re 1 3.57 1.0
     2×10 rm 7 4.01 1.0
     2×16 rm 7 5.03 1.0
     2×25 rm 7 6.3 1.2
     2×35 rm 7 7.44 1.2
    UNARMOURED
    Nominal Sheath thickness Approx. Overall diameter Approx. Weight Packing
    mm mm Kg/Km meters
     1.8 12 200 1000
     1.8 13 200 1000
     1.8 13 225 1000
     1.8 14 275 1000
     1.8 15 325 1000
     1.8 16 350 1000
     1.8 16 375 1000
     1.8 17 400 1000
     1.8 18 500 1000
     1.8 19 550 1000
     1.8 21 725 1000
     1.8 24 1025 1000
     1.8 26 1300 1000
      Colour Code ( 1 ) Colour Code ( 2 ) Tolerance range :
    re : Round Solid
    rm : Round Stranded    		 1 core : Black (Red on request)
    2 cores : Red, Black    		 1 core : Brown or Blue
    2 core : Brown, Blue    		 Overall diameter -2%, +8%
    Packing ±5%
    Single core cables are Aluminium Armoured as per IEC 60502-1 recommendation.





    CABLE CORE(S)
    Nominal Area No or wires Approx Conductor Diameter Nominal Insulation thickness
    mm² No. mm mm
     3×1.5 re 1 1.38 0.8
     3×1.5 rm 7 1.56 0.8
     3×2.5 re 1 1.78 0.8
     3×2.5 rm 7 2.01 0.8
     3×4 re 1 2.25 1.0
     3×4 rm 7 2.55 1.0
     3×6 re 1 2.76 1.0
     3×6 rm 7 3.12 1.0
     3×10 re 1 3.57 1.0
     3×10 rm 7 4.01 1.0
     3×16 rm 7 5.03 1.0
     3×25 rm 7 6.3 1.2
     3×35 rm 7 7.44 1.2
     3×50 sm 6 – 1.4
     3×70 sm 12 – 1.4
     3×95 sm 15 – 1.6
     3×120 sm 18 – 1.6
     3×150 sm 18 – 1.8
     3×185 sm 30 – 2.0
     3×240 sm 34 – 2.2
     3×300 sm 34 – 2.4
     3×400 sm 53 – 2.6
     3×500 sm 53 – 2.8
    UNARMOURED
    Nominal Sheath thickness Approx. Overall diameter Approx. Weight Packing
    mm mm Kg/Km meters
    1.8 13 225 1000
    1.8 13 225 1000
    1.8 14 275 1000
    1.8 14 285 1000
    1.8 16 375 1000
    1.8 16 400 1000
    1.8 17 450 1000
    1.8 18 475 1000
    1.8 19 600 1000
    1.8 19 650 1000
    1.8 22 875 1000
    1.8 25 1275 1000
    1.8 28 1500 1000
    1.8 29 1850 1000
    2.0 32 2525 500
    2.1 36 3400 500
    2.2 39 4150 500
    2.3 44 5125 500
    2.5 48 6350 500
    2.7 54 8225 500
    2.9 59 10200 500
    3.1 67 12875 500
    3.4 74 16340 500



    CABLE CORE(S)
    Nominal Area No or wires Approx Conductor Diameter Nominal Insulation thickness
      Ph Ne Ph Ne Ph Ne
     3×10 rm+6 7 7 4.01 3.12 1.0 1.0
     3×16 rm+10 7 7 5.03 4.01 1.0 1.0
     3×25 rm+16 7 7 6.3 5.03 1.2 1.0
     3×35 sm+16 6 7 – 5.03 1.2 1.0
     3×50 sm+25 6 7 – 6.30 1.4 1.2
     3×70 sm+35 12 7 – 7.44 1.4 1.2
     3×95 sm+50 15 19 – 8.80 1.6 1.4
     3×120 sm+70 18 19 – 10.60 1.6 1.4
     3×150 sm+70 18 19 – 10.60 1.8 1.4
     3×185 sm+95 30 19 – 12.40 2.0 1.6
     3×240 sm+120 34 37 – 14.00 2.2 1.6
     3×300 sm+150 34 37 – 15.50 2.4 1.8
     3×400 sm+185 53 37 – 17.40 2.6 2.0
     3×500 sm+240 53 61 – 20.00 2.8 2.2
    UNARMOURED
    Nominal Sheath thickness Approx. Overall diameter Approx. Weight Packing
    mm mm Kg/Km meters
    1.8 21 730 1000
    1.8 23 1000 1000
    1.8 27 1450 1000
    1.8 27 1600 1000
    1.9 31 2150 1000
    2.0 35 2950 500
    2.2 39 3975 500
    2.3 43 4975 500
    2.4 47 5925 500
    2.6 52 7425 500
    2.8 58 9575 500
    3.0 64 11850 250
    3.2 72 15025 250
    3.5 79 19025 250
      Colour Code ( 1 ) Colour Code ( 2 ) Tolerance range :
    re : Round Solid
    rm : Round Stranded
    sm : Sectoral Stranded
    Ph : Phase
    Ne : Neutral    		 3 cores : Red, Yellow, Blue
    31/2 cores : Red, Yellow, Blue, Black    		 3 Cores :Brown, Black, Grey
    3 1/2 Cores : Blue, Brown, Black, Grey    		 Overall diameter -2%, +8%
    Packing ±5%
    For 31/2 core, neutral conductors are round stranded.
    For sectoral conductors, number of wires mentioned is minimum number of wires in accordance with IEC 228.





    CABLE CORE(S)
    Nominal Area No or wires Approx Conductor Diameter Nominal Insulation thickness
    mm² No. mm mm
     4×1.5 re 1 1.38 0.8
     4×1.5 rm 7 1.56 0.8
     4×2.5 re 1 1.78 0.8
     4×2.5 rm 7 2.01 0.8
     4×4 re 1 2.25 1.0
     4×4 rm 7 2.55 1.0
     4×6 re 1 2.76 1.0
     4×6 rm 7 3.12 1.0
     4×10 re 1 3.57 1.0
     4×10 rm 7 4.01 1.0
     4×16 rm 7 5.03 1.0
     4×25 rm 7 6.3 1.2
     4×35 sm 6 – 1.2
     4×50 sm 6 – 1.4
     4×70 sm 12 – 1.4
     4×95 sm 15 – 1.6
     4×120 sm 18 – 1.6
     4×150 sm 18 – 1.8
     4×185 sm 30 – 2.0
     4×240 sm 34 – 2.2
     4×300 sm 34 – 2.4
     4×400 sm 53 – 2.6
     4×500 sm 53 – 2.8
    UNARMOURED
    Nominal Sheath thickness Approx. Overall diameter Approx. Weight Packing
    mm mm Kg/Km meters
    1.8 14 250 1000
    1.8 14 275 1000
    1.8 15 325 1000
    1.8 15 325 1000
    1.8 17 450 1000
    1.8 18 475 1000
    1.8 18 550 1000
    1.8 19 575 1000
    1.8 20 750 1000
    1.8 21 800 1000
    1.8 24 1100 1000
    1.8 28 1600 1000
    1.8 28 1800 1000
    1.9 32 2400 500
    2.1 36 3275 500
    2.2 41 4425 500
    2.4 45 5475 500
    2.5 49 6700 500
    2.7 55 8350 500
    2.9 61 10765 500
    3.1 67 13350 250
    3.4 76 17000 250
    3.6 83 21425 250
      Colour Code ( 1 ) Colour Code ( 2 ) Tolerance range :
    re : Round Solid
    rm : Round Stranded
    sm : Sectoral Stranded    		 4 cores : Red, Yellow, Blue, Black 4 cores :Blue, Brown, Black, Grey Overall diameter -2%, +8%
    Packing ±5%
    For sectoral conductors, number of wires mentioned is minimum of wires in accordance with IEC 228.

PVC Insulation PVC Sheathed Cables (IEC 60502-1), Aluminium

  • PVC Insulation TYPE A (IEC 60502-1), PVC Insulation TYPE TI1(BS EN 50363)


  • PVC Insulation as per SASO 1694, XLPE Insulation (IEC 60502-1, BS 5467)


  • PVC Sheath TYPE ST2 (IEC 60502), TYPE 9 (BS 7655).


  • PVC Insulation PVC Sheathed Cables (IEC 60502-1), Copper.


  • PVC Insulation PVC Sheathed Cables (IEC 60502-1), Aluminium.

    PVC INSULATED , PVC SHEATHED CABLES

    ALUMINIUM CONDUCTORS

    STANDARD : IEC 60502-1

    600/1000 VOLTS



    • UNARMOURED
    • ALUMINIUM/STEEL WIRE ARMOURED
    • ALUMINIUM/STEEL TAPE ARMOURED





    CABLE CORE(S)
    Nominal Area No or wires Approx Conductor Diameter Nominal Insulation thickness
    mm² No. mm mm
     1×16 rm 7 4.98 1.0
     1×25 rm 7 6.3 1.2
     1×35 rm 7 7.41 1.2
     1×50 rm 19 8.75 1.4
     1×70 rm 19 10.55 1.4
     1×95 rm 19 12.4 1.6
     1×120 rm 37 14 1.6
     1×150 rm 37 15.47 1.8
     1×185 rm 37 17.36 2.0
     1×240 rm 61 19.89 2.2
     1×300 rm 61 22.23 2.4
     1×400 rm 61 25.2 2.6
     1×500 rm 61 28.62 2.8
     1×630 rm 91 32.56 2.8
    UNARMOURED
    Nominal Sheath thickness Approx. Overall diameter Approx. Weight Packing
    mm mm Kg/Km meters
    1.4 10 135 1000
    1.4 12 185 1000
    1.4 13 225 1000
    1.4 15 300 1000
    1.4 17 375 1000
    1.5 19 500 1000
    1.5 21 600 1000
    1.6 23 725 1000
    1.7 25 900 1000
    1.8 28 1150 1000
    1.9 31 1400 1000
    2.0 35 1750 500
    2.1 39 2200 500
    2.2 43 2725 500





    CABLE CORE(S)
    Nominal Area No or wires Approx Conductor Diameter Nominal Insulation thickness
    mm² No. mm mm
     2×16 rm 7 4.98 1.0
     2×25 rm 7 6.3 1.2
     2×35 rm 7 7.41 1.2
    UNARMOURED
    Nominal Sheath thickness Approx. Overall diameter Approx. Weight Packing
    mm mm Kg/Km meters
     1.8 20 525 1000
     1.8 24 725 1000
     1.8 26 875 1000



    CABLE CORE(S)
    Nominal Area No or wires Approx Conductor Diameter Nominal Insulation thickness
    mm² No. mm mm
     3×16 rm 7 4.98 1.0
     3×25 rm 7 6.3 1.2
     3×35 rm 7 7.41 1.2
     3×50 sm 6 – 1.4
     3×70 sm 12 – 1.4
     3×95 sm 15 – 1.6
     3×120 sm 15 – 1.6
     3×150 sm 15 – 1.8
     3×185 sm 30 – 2.0
     3×240 sm 30 – 2.2
     3×300 sm 30 – 2.4
     3×400 sm 53 – 2.6
     3×500 sm 53 – 2.8
    UNARMOURED
    Nominal Sheath thickness Approx. Overall diameter Approx. Weight Packing
    mm mm Kg/Km meters
    1.8 22 600 1000
    1.8 25 825 1000
    1.8 28 875 1000
    1.8 29 1000 1000
    2.0 32 1275 500
    2.1 36 1675 500
    2.2 39 1950 500
    2.3 44 2400 500
    2.5 48 2925 500
    2.7 54 3775 500
    2.9 59 4575 500
    3.1 67 5725 250
    3.4 74 7175 250
      Colour Code ( 1 ) Colour Code ( 2 ) Tolerance range :
    rm : Round Stranded
    sm : Sectoral Stranded    		 1 core : Black (Red on request)
    2 cores : Red, Black
    3 Cores : Red, Yellow, Blue    		 1 core : Brown or Blue
    2 cores : Brown, Blue
    3 cores : Brown, Black, Grey    		 Overall diameter -2%, +8%
    Packing ±5%
    Single core cables are Aluminium Armoured as per IEC 60502-1 recommendation.
    For sectoral conductors, number of wires mentioned is minimum number of wires in accordance with IEC 228



    CABLE CORE(S)
    Nominal Area No or wires Approx Conductor Diameter Nominal Insulation thickness
      Ph Ne Ph Ne Ph Ne
     3×25 rm+16 7 7 6.3 4.98 1.2 1.0
     3×35 sm+16 6 7 – 4.98 1.2 1.0
     3×50 sm+25 6 7 – 6.30 1.4 1.2
     3×70 sm+35 12 7 – 7.41 1.4 1.2
     3×95 sm+50 15 19 – 8.75 1.6 1.4
     3×120 sm+70 15 19 – 10.55 1.6 1.4
     3×150 sm+70 15 19 – 10.55 1.8 1.4
     3×185 sm+95 30 19 – 12.40 2.0 1.6
     3×240 sm+120 30 37 – 14.00 2.2 1.6
     3×300 sm+150 30 37 – 15.47 2.4 1.8
     3×400 sm+185 53 37 – 17.36 2.6 2.0
     3×500 sm+240 53 61 – 19.89 2.8 2.2
    UNARMOURED
    Nominal Sheath thickness Approx. Overall diameter Approx. Weight Packing
    mm mm Kg/Km meters
    1.8 27 900 1000
    1.8 27 875 1000
    1.9 31 1150 500
    2.0 34 1475 500
    2.2 39 1950 500
    2.3 43 2375 500
    2.4 47 2800 500
    2.6 52 3450 500
    2.8 58 4400 500
    3.0 64 5375 250
    3.2 72 6775 250
    3.5 79 8400 250





    CABLE CORE(S)
    Nominal Area No or wires Approx Conductor Diameter Nominal Insulation thickness
    mm² No. mm mm
     4×16 rm 7 4.98 1.0
     4×25 rm 7 6.3 1.2
     4×35 sm 6 – 1.2
     4×50 sm 6 – 1.4
     4×70 sm 12 – 1.4
     4×95 sm 15 – 1.6
     4×120 sm 15 – 1.6
     4×150 sm 15 – 1.8
     4×185 sm 30 – 2.0
     4×240 sm 30 – 2.2
     4×300 sm 30 – 2.4
     4×400 sm 53 – 2.6
     4×500 sm 53 – 2.8
    UNARMOURED
    Nominal Sheath thickness Approx. Overall diameter Approx. Weight Packing
    mm mm Kg/Km meters
    1.8 23 700 1000
    1.8 28 1000 1000
    1.8 28 925 1000
    1.9 32 1250 500
    2.1 36 1600 500
    2.2 41 2100 500
    2.4 45 2550 500
    2.5 49 3075 500
    2.7 55 3800 500
    2.9 61 4825 500
    3.1 67 5875 250
    3.4 76 7475 250
    3.6 83 9225 250
      Colour Code ( 1 ) Colour Code ( 2 ) Tolerance range :
    re : Round Solid
    rm : Round Stranded
    sm : Sectoral Stranded
    Ph : Phase Conductor
    Ne : Neutral Conductor    		 3 1/2 Cores : Red, Yellow, Blue, Black
    4 cores : Red, Yellow, Blue, Black    		 3 1/2 Cores : Blue, Brown, Black, Grey
    4 cores :Blue, Brown, Black, Grey    		 Overall diameter -2%, +8%
    Packing ±5%
    For 3 1/2 cores, neutral conductors are round stranded.

XLPE Insulated PVC Sheathed Cables (IEC 60502-1), Copper

    • PVC Insulation TYPE A (IEC 60502-1), PVC Insulation TYPE TI1(BS EN 50363)


    • PVC Insulation as per SASO 1694, XLPE Insulation (IEC 60502-1, BS 5467)


    • PVC Sheath TYPE ST2 (IEC 60502), TYPE 9 (BS 7655).


    • PVC Insulation PVC Sheathed Cables (IEC 60502-1), Copper.


    • PVC Insulation PVC Sheathed Cables (IEC 60502-1), Aluminium.


    • XLPE Insulated PVC Sheathed Cables (IEC 60502-1), Copper.

      XLPE INSULATED, PVC SHEATHED CABLES

      COPPER CONDUCTORS

      STANDARD : IEC 60502-1

      600/1000 VOLTS







      CABLE CORE(S)
      Nominal Area No or wires Approx Conductor Diameter Nominal Insulation thickness
      mm² No. mm mm
       1×1.5 re 1 1.38 0.7
       1×1.5 rm 7 1.56 0.7
       1×2.5 re 1 1.78 0.7
       1×2.5 rm 7 2.01 0.7
       1×4 re 1 2.25 0.7
       1×4 rm 7 2.55 0.7
       1×6 re 1 2.76 0.7
       1×6 rm 7 3.12 0.7
       1×10 rm 7 4.01 0.7
       1×16 rm 7 5.03 0.7
       1×25 rm 7 6.3 0.9
       1×35 rm 7 7.44 0.9
       1×50 rm 19 8.8 1.0
       1×70 rm 19 10.6 1.1
       1×95 rm 19 12.4 1.1
       1×120 rm 37 14 1.2
       1×150 rm 37 15.5 1.4
       1×185 rm 37 17.4 1.6
       1×240 rm 61 20 1.7
       1×300 rm 61 22.5 1.8
       1×400 rm 61 25.4 2.0
       1×500 rm 61 28.5 2.2
       1×630 rm 91 32.8 2.4
      UNARMOURED
      Nominal Sheath thickness Approx. Overall diameter Approx. Weight Packing
      mm mm Kg/Km meters
      1.4 6 45 1000
      1.4 6 50 1000
      1.4 6 60 1000
      1.4 7 60 1000
      1.4 7 75 1000
      1.4 7 80 1000
      1.4 7 95 1000
      1.4 8 100 1000
      1.4 9 145 1000
      1.4 10 200 1000
      1.4 11 300 1000
      1.4 13 400 1000
      1.4 14 525 1000
      1.4 16 725 1000
      1.5 18 1000 1000
      1.5 20 1225 1000
      1.6 22 1500 1000
      1.6 24 1875 1000
      1.7 27 2450 1000
      1.8 30 3050 1000
      1.9 34 3900 500
      2.0 37 4975 500
      2.2 42 6425 500



      CABLE CORE(S)
      Nominal Area No or wires Approx Conductor Diameter Nominal Insulation thickness
      mm² No. mm mm
       2×1.5 re 1 1.38 0.7
       2×1.5 rm 7 1.56 0.7
       2×2.5 re 1 1.78 0.7
       2×2.5 rm 7 2.01 0.7
       2×4 re 1 2.25 0.7
       2×4 rm 7 2.55 0.7
       2×6 re 1 2.76 0.7
       2×6 rm 7 3.12 0.7
       2×10 rm 7 4.01 0.7
       2×16 rm 7 5.03 0.7
       2×25 rm 7 6.3 0.9
       2×35 rm 7 7.44 0.9
      UNARMOURED
      Nominal Sheath thickness Approx. Overall diameter Approx. Weight Packing
      mm mm Kg/Km meters
       1.8 12 175 1000
       1.8 13 200 1000
       1.8 13 225 1000
       1.8 13 225 1000
       1.8 14 275 1000
       1.8 14 275 1000
       1.8 15 325 1000
       1.8 16 350 1000
       1.8 17 475 1000
       1.8 19 650 1000
       1.8 23 925 1000
       1.8 25 1200 1000
        Colour Code ( 1 ) Colour Code ( 2 ) Tolerance range :
      re : Round Solid
      rm : Round Stranded      		 1 core : Black (Red on request)
      2 cores : Red, Black      		 1 core : Brown or Blue
      2 core : Brown, Blue      		 Overall diameter -2%, +8%
      Packing ±5%
      Single core cables are Aluminium Armoured as per IEC 60502-1 recommendation.







      CABLE CORE(S)
      Nominal Area No or wires Approx Conductor Diameter Nominal Insulation thickness
      mm² No. mm mm
       3×1.5 re 1 1.38 0.7
       3×1.5 rm 7 1.56 0.7
       3×2.5 re 1 1.78 0.7
       3×2.5 rm 7 2.01 0.7
       3×4 re 1 2.25 0.7
       3×4 rm 7 2.55 0.7
       3×6 re 1 2.76 0.7
       3×6 rm 7 3.12 0.7
       3×10 rm 7 4.01 0.7
       3×16 rm 7 5.03 0.7
       3×25 rm 7 6.3 0.9
       3×35 rm 7 7.44 0.9
       3×50 sm 6 – 1.0
       3×70 sm 12 – 1.1
       3×95 sm 15 – 1.1
       3×120 sm 18 – 1.2
       3×150 sm 18 – 1.4
       3×185 sm 30 – 1.6
       3×240 sm 34 – 1.7
       3×300 sm 34 – 1.8
       3×400 sm 53 – 2.0
       3×500 sm 53 – 2.2
      UNARMOURED
      Nominal Sheath thickness Approx. Overall diameter Approx. Weight Packing
      mm mm Kg/Km meters
      1.8 13 200 1000
      1.8 13 210 1000
      1.8 13 250 1000
      1.8 14 275 1000
      1.8 14 325 1000
      1.8 15 325 1000
      1.8 15 400 1000
      1.8 16 400 1000
      1.8 18 575 1000
      1.8 20 800 1000
      1.8 24 1150 1000
      1.8 27 1375 1000
      1.8 27 1675 1000
      1.9 31 2350 500
      2.0 34 3150 500
      2.1 37 3875 500
      2.3 42 4825 500
      2.4 46 5950 500
      2.6 51 7725 500
      2.8 56 9575 500
      3.1 64 12175 250
      3.3 71 15500 250



      CABLE CORE(S)
      Nominal Area No or wires Approx Conductor Diameter Nominal Insulation thickness
        Ph Ne Ph Ne Ph Ne
       3×300 sm+150 34 37 – 15.50 1.8 1.4
       3×400 sm+185 53 37 – 17.40 2.0 1.6
       3×500 sm+240 53 61 – 20.00 2.2 1.7
       3×10 rm+6 7 7 4.01 3.12 0.7 0.7
       3×16 rm+10 7 7 5.03 4.01 0.7 0.7
       3×25 rm+16 7 7 6.3 5.03 0.9 0.7
       3×35 sm+16 6 7 – 5.03 0.9 0.7
       3×50 sm+25 6 7 – 6.30 1.0 0.9
       3×70 sm+35 12 7 – 7.44 1.1 0.9
       3×95 sm+50 15 19 – 8.80 1.1 1.0
       3×120 sm+70 18 19 – 10.60 1.2 1.1
       3×150 sm+70 18 19 – 10.60 1.4 1.1
       3×185 sm+95 30 19 – 12.40 1.6 1.1
       3×240 sm+120 34 37 – 14.00 1.7 1.2
      UNARMOURED
      Nominal Sheath thickness Approx. Overall diameter Approx. Weight Packing
      mm mm Kg/Km meters
      2.9 61 11150 250
      3.1 68 14500 250
      3.4 76 18050 250
      1.8 19 640 1000
      1.8 22 900 1000
      1.8 25 1325 1000
      1.8 25 1475 1000
      1.8 29 1950 1000
      1.9 33 2750 500
      2.1 37 3675 500
      2.2 40 4600 500
      2.3 45 5550 500
      2.5 50 6975 500
      2.7 55 9275 500
        Colour Code ( 1 ) Colour Code ( 2 ) Tolerance range :
      re : Round Solid
      rm : Round Stranded
      sm : Sectoral Stranded
      Ph : Phase
      Ne : Neutral      		 3 cores : Red, Yellow, Blue
      31/2 cores : Red, Yellow, Blue, Black      		 3 Cores :Brown, Black, Grey
      3 1/2 Cores : Blue, Brown, Black, Grey      		 Overall diameter -2%, +8%
      Packing ±5%
      For 31/2 core, neutral conductors are round stranded.
      For sectoral conductors, number of wires mentioned is minimum number of wires in accordance with IEC 228.





      CABLE CORE(S)
      Nominal Area No or wires Approx Conductor Diameter Nominal Insulation thickness
      mm² No. mm mm
       4×1.5 re 1 1.38 0.7
       4×1.5 rm 7 1.56 0.7
       4×2.5 re 1 1.78 0.7
       4×2.5 rm 7 2.01 0.7
       4×4 re 1 2.25 0.7
       4×4 rm 7 2.55 0.7
       4×6 re 1 2.76 0.7
       4×6 rm 7 3.12 0.7
       4×10 rm 7 4.01 0.7
       4×16 rm 7 5.03 0.7
       4×25 rm 7 6.3 0.9
       4×35 sm 6 – 0.9
       4×50 sm 6 – 1.0
       4×70 sm 12 – 1.1
       4×95 sm 15 – 1.1
       4×120 sm 18 – 1.2
       4×150 sm 18 – 1.4
       4×185 sm 30 – 1.6
       4×240 sm 34 – 1.7
       4×300 sm 34 – 1.8
       4×400 sm 53 – 2.0
       4×500 sm 53 – 2.2
      UNARMOURED
      Nominal Sheath thickness Approx. Overall diameter Approx. Weight Packing
      mm mm Kg/Km meters
      1.8 13 230 1000
      1.8 14 250 1000
      1.8 14 300 1000
      1.8 15 300 1000
      1.8 15 375 1000
      1.8 16 400 1000
      1.8 17 475 1000
      1.8 17 500 1000
      1.8 20 700 1000
      1.8 22 975 1000
      1.8 26 1450 1000
      1.8 26 1650 1000
      1.9 30 2175 1000
      2.0 34 3050 500
      2.1 38 4100 500
      2.3 43 5125 500
      2.4 47 6300 500
      2.6 52 7825 500
      2.8 58 10150 500
      3.0 64 12575 500
      3.3 73 16075 250
      3.5 80 20375 250
        Colour Code ( 1 ) Colour Code ( 2 ) Tolerance range :
      re : Round Solid
      rm : Round Stranded
      sm : Sectoral Stranded      		 4 cores : Red, Yellow, Blue, Black 4 cores :Blue, Brown, Black, Grey Overall diameter -2%, +8%
      Packing ±5%

Interested in buying our products?

Get Quote Now!
